TVG-12100
12V100Ah VRLA GEL Battery
| Item | Specifications |
|---|---|
| Model | TVG-12100 |
| Nominal Voltage | 12V |
| Nominal Capacity | 100AH |
| Energy | 1.20KWH |
| Length | 330mm (13.0inches) |
| Width | 173mm (6.81inches) |
| Container Height | 212mm (8.35inches) |
| Total Height | 218mm (8.58inches) |
| Approx Weight | 30.8kg (67.9lbs) |
| Terminal | T11 |
| Short-circuit current | 2000A |
| Internal Resistance (25℃) | Approx 4.9 mΩ (Fully charged) |
| Nominal Operating Temp. Range | 25±3℃ (77±5°F) |
| Max.Charging Current (25℃) | 0.25C |
| Effect of temp. to Capacity | 103%, 40℃ (104°F) 86%, 0℃ (32°F) |
| Battery Max Parallel Number | 4 |
| Certificate | IEC60896 Certified UL,CE Approved Manufactured in ISO 45001, ISO 9001 and ISO 14001 certified production facilities |
12V150Ah VRLA GEL Battery
Nominal Voltage：12V
Nominal Capacity：150AH
Energy：1.80KWH
Approx Weight：43.6kg (96.1lbs)

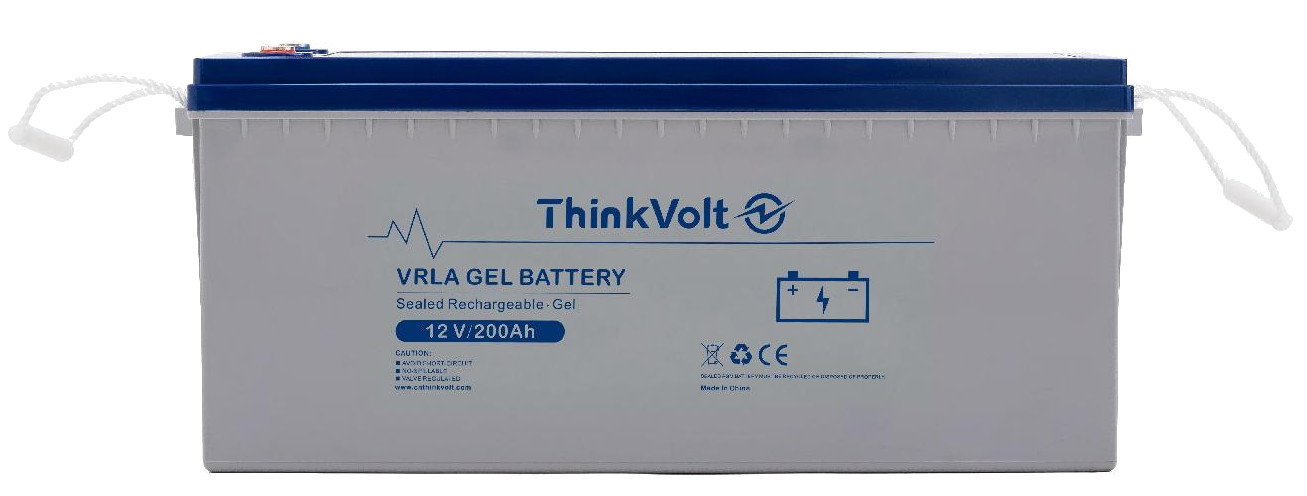

12V200Ah VRLA GEL Battery
Nominal Voltage：12V
Nominal Capacity：200AH
Energy：2.40KWH
Approx Weight：60.3kg (132.9lbs)

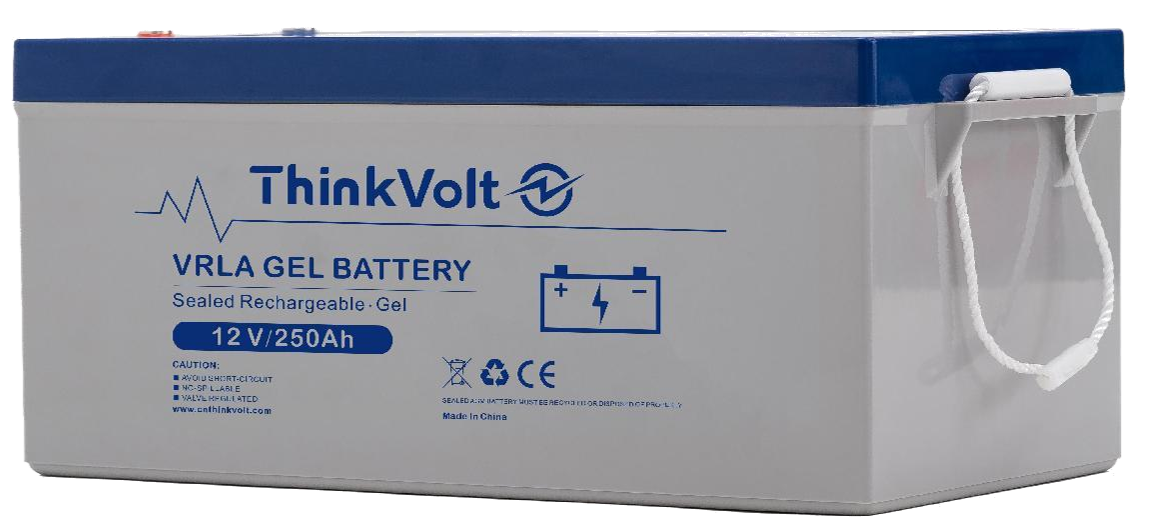

12V250Ah VRLA GEL Battery
Nominal Voltage：12V
Nominal Capacity：250AH
Energy：3.00KWH
Approx Weight：75.5kg (166.4lbs)
