TVES-48100R
51.2V100Ah Lithium LiFePO4 Battery Rack Mounted
| Item | Specifications |
|---|---|
| Model | TVES-48100R |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 5.12KWH |
| Rated Charge Current | 50A |
| Max. Charge Current | 100A |
| Rated Charge Voltage | 54.4~55.2V |
| Charge Cut-off Voltage | 58.4V |
| Balancing Voltage | >54.4V |
| Rated Discharge Current | 50A |
| Max. Discharge Curent | 100A |
| Rated Discharge Cut-off Voltage | 44.8V |
| Min. Discharge Cut-off Voltage | >40V |
| Short Circuit Current | Approx.2000A |
| Cycle Life | ≥6000 times(80%DOD) |
| Communication Protocol | CAN/RS485 |
| Storage Temperature | -5°C~ 35°C |
| Battery Max Parallel Number | 16(CAN)/14(RS485) |
| Dimension | 442*420*130MM |
| Weight | 42KG |
| Certificate | Cell: CE/UN38.3/UL1973
Battery: CE/UN38.3/IEC62619 Transport Appraisal: UN3480,CLASS 9 |

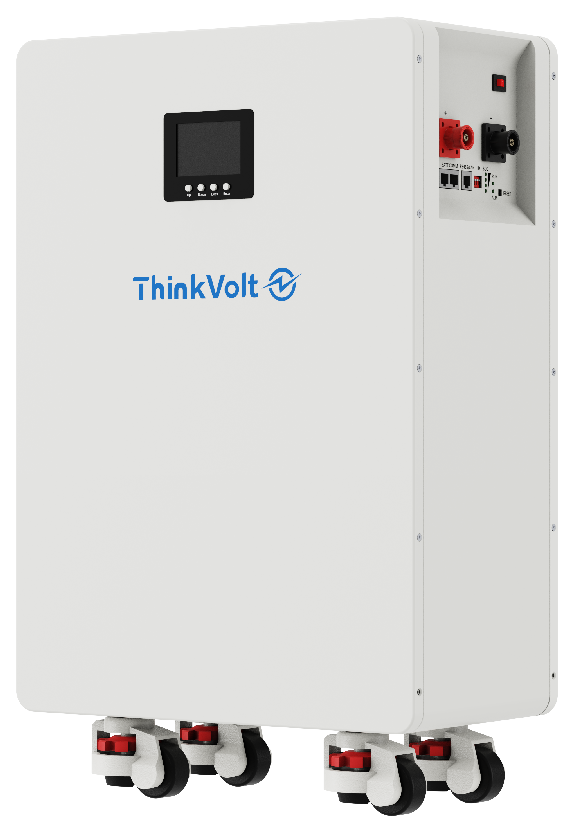

51.2V200Ah Lithium LiFePO4 Battery Landing
Nominal Voltage：51.2V
Nominal Capacity：200AH
Energy：10.24KWH
Rated Charge Current：50A
Max. Charge Current：100A

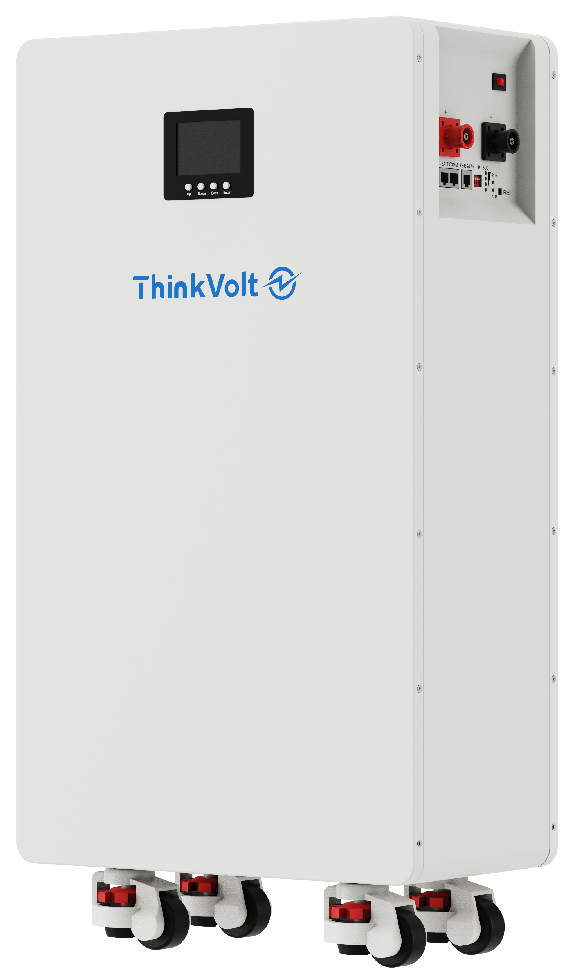

51.2V300Ah Lithium LiFePO4 Battery Landing
Nominal Voltage：51.2V
Nominal Capacity：314AH
Energy：16.08KWH
Rated Charge Current：75A
Max. Charge Current：150A

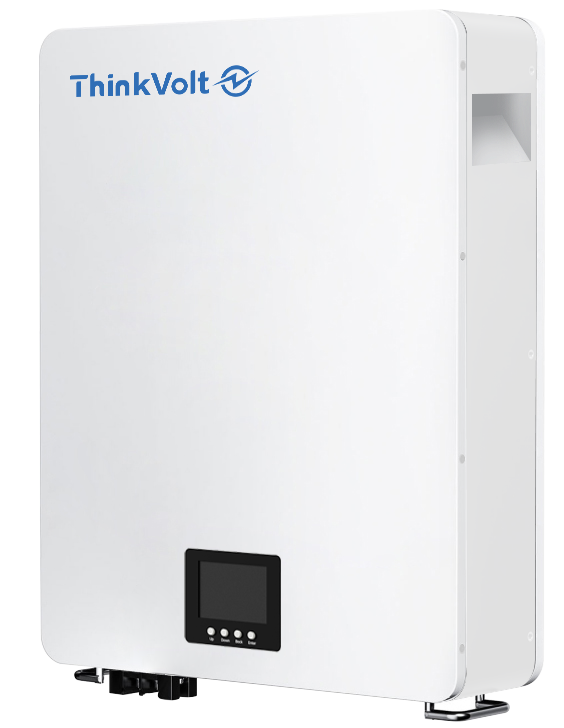

51.2V100Ah Lithium LiFePO4 Battery Power Wall
Nominal Voltage：51.2V
Nominal Capacity：100AH
Energy：5.12KWH
Rated Charge Current：50A
Max. Charge Current：100A

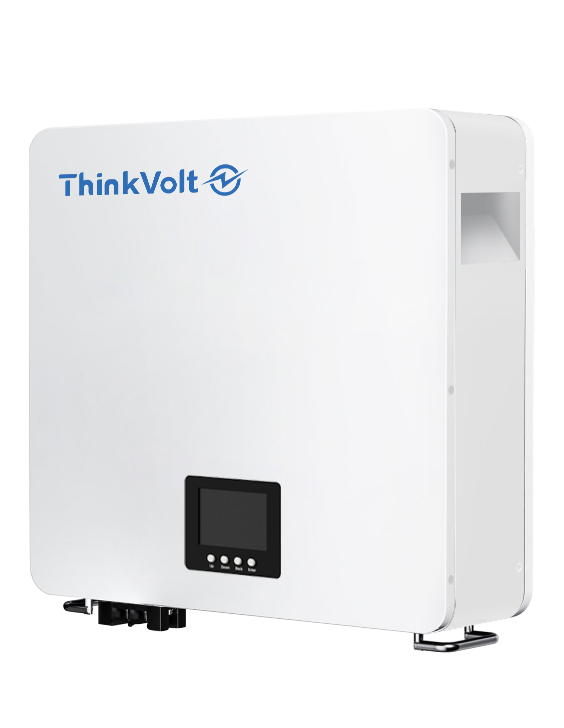

25.6V200Ah Lithium LiFePO4 Battery Power Wall
Nominal Voltage：25.6V
Nominal Capacity：200AH
Energy：5.12KWH
Rated Charge Current：50A
Max. Charge Current：100A
51.2V280Ah Lithium LiFePO4 Battery Landing
Nominal Voltage：51.2V
Nominal Capacity：280AH
Energy：14.34KWH
Rated Charge Current：75A
Max. Charge Current：150A
25.6V100Ah Lithium LiFePO4 Battery Power Wall
Nominal Voltage：25.6V
Nominal Capacity：100AH
Energy：2.56KWH
Rated Charge Current：50A
Max. Charge Current：100A
